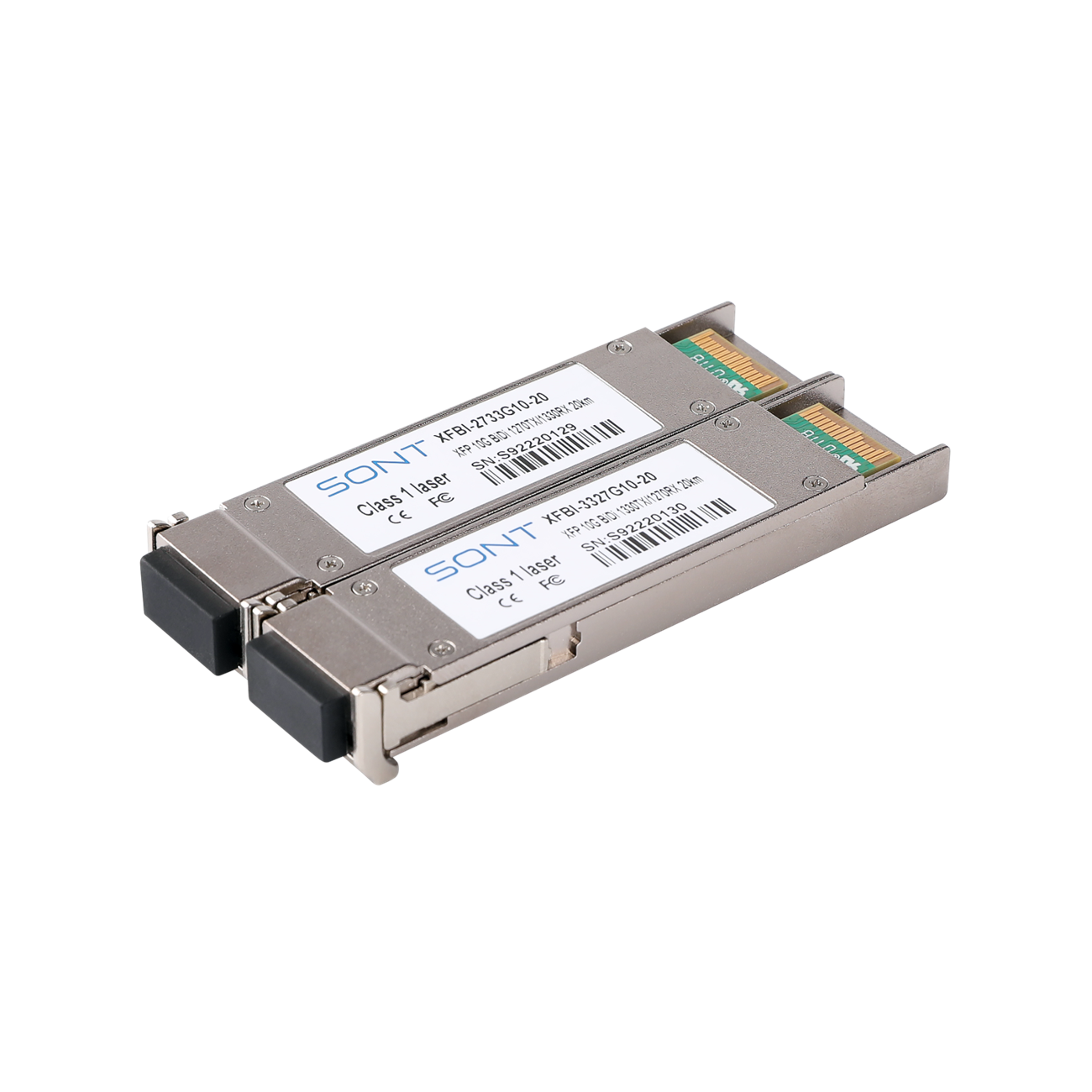

XPBI-2733(3327)G10-20 is hot pluggable 3.3V Small Form Factor Pluggable (SFP) transceiver module ,It is designed expressly for high-speed communicattion that require rates up to 11.3Gbps,it designed to be compliant with XFP MSA. The module data link up to 20km in 9/125um single mode fiber.
0755-26487154
● 10GBASE-BX 10.3125Gb/s Ethernet
● 10GBASE-BX 9.9535Gb/s Ethernet
● SONET oc-192 SR-1 SDH STMI-64.1
● Hot-pluggable XFP footprint
● Supports 9.95Gb/s to 11.3Gb/s bit rates
● XFI Loopback Mode
● RoHS-6 Compliant (lead-free)
● Power dissipation <2W
● 1270nm DFB laser and PIN reciever for XPBI-2733G10-20 1330nm DFB laser and PIN reciever for XPBI-3327G10-20
● Case operating ● ●● temperature: 0°C to +70°C
● Single +3.3V Power supply
● Up to20Km transimission on SMF
● 2-wire interface with intergrated Digital Diagnostic monitoring
● EEPROM with Serial ID Functionality
● Compliant with XFP MSA with LC connector
● Distance:20Km
● Data Rate :10Gb/s
● Low End Case Temperature (°C):0
● High End Case Temperature (°C):+70
● Diagnostics:Digital
● Transmitter:DFB
● Receiver:PIN
● Voltage Supply:3.3
● Connector:LC
● Wavelength:1270nm/1330nm Band"
